Model Image Variant Year Axle KGC No. Type Size
A B C D E F

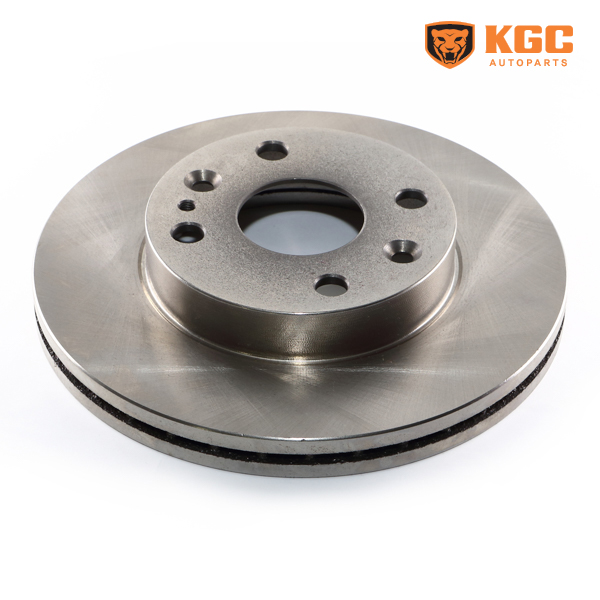

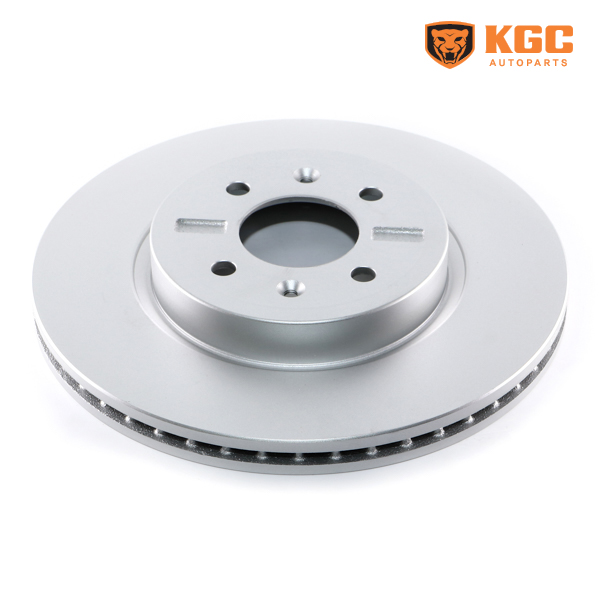

모닝 MORNING 04/02-07/12 F GD2310-128 Vented 243 49 18 16 62 4

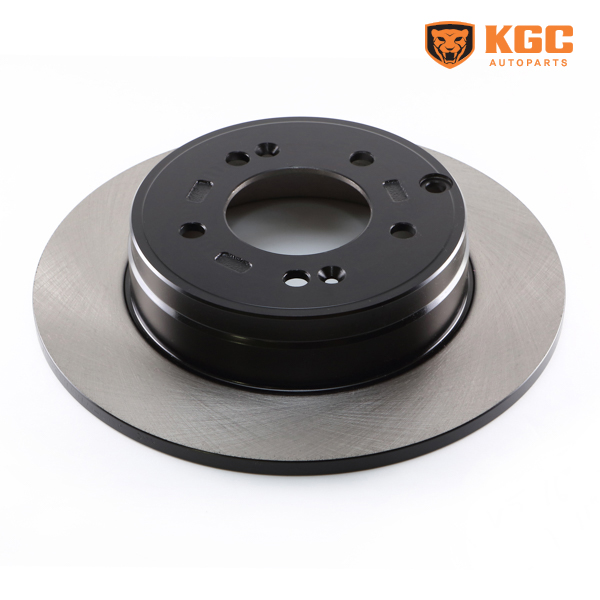

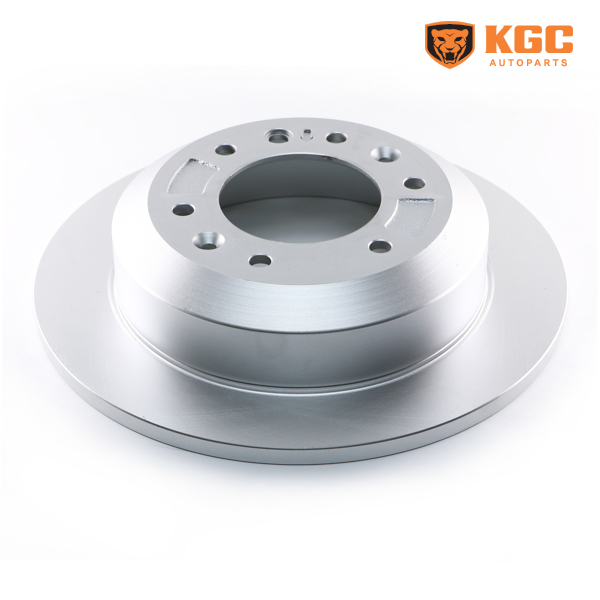

MORNING 04/02-07/12 R GD2320-368 Solid 233 37.8 10 8 62.5 4

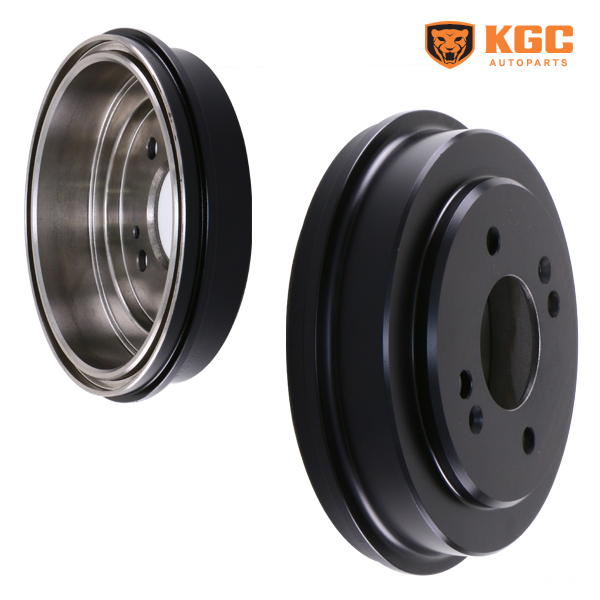

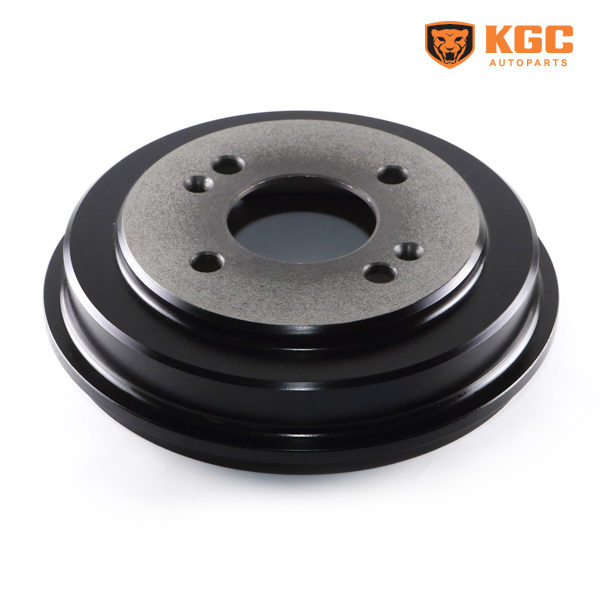

MORNING NEW 10/12- R GD2330-369 Drum 207 54 180 182 62 4
모닝 TA MORNING TA 11/01-17/01 F GD2335-469 Vented 250 49 18 16 62 4
레이 RAY TURBO 11/11- F GD3235-470 Vented 250 49 18 16 62 4
리오 RIO M/T 99/11-02/08 F GD2110-128 Vented 236 45 22 20 55 4
RIO A/T 99/11-02/08 F GD1220-135 Vented 236 48 22 20 55 4
RIO SF 02/08-05/04 F GD1120-167 Vented 234 51 22 20 55 4
RIO 99/11-05/04 R GD1230-955 Drum 230 66 199 201 45 4
아벨라 AVELLA M/T 94/03-99/12 F GD1210-1221 Vented 236 45 22 20 55 4
AVELLA A/T 94/03-99/12 F GD1220-135 Vented 236 48 22 20 55 4
프라이드 PRIDE 87/03-00/02 F GD1010-139 Solid 219 37 13 11.6 75 4
PRIDE 87/03-00/02 R GD1020-135 Drum 194 73 170 172 50 4
프라이드
JB
PRIDE NEW 05/04-11/09 F GD1110-261 Vented 256 47 22 20 62 4
PRIDE NEW 05/04-11/09 R GD1120-002 Drum 244 59 230 232 62 4
PRIDE NEW 05/04-11/09 R GD1130-003 Solid 262 64 10 8 62 4
프라이드
UB
PRIDE ALL NEW 11/09- F HK2510-109 Vented 280 44 22 20 62 4
PRIDE ALL NEW 11/09- F HK2510-110 Vented 256 44 22 20 62 4
PRIDE ALL NEW 11/09- R GD1130-004 Solid 264 45 10 8 62 4
콩코드/
캐피탈
CONCORD 87/12-91/06 F GD2610-257 Vented 250 36 20 18 75 4
CAPITAL 87/12-91/06 F GD2620-263 Vented 228 35 20 18 75 4
세피아 SEPHIA 92/09-97/12 F GD2410-324 Vented 243 44 20 18 57 4
SEPHIA 92/09-97/12 R GD2420-325 Drum 230 59 200 202 57 4
SEPHIA II 97/08-00/05 F GD2430-398 Vented 243 44 20 18 57 4
SEPHIA II 97/08-00/05 R GD2440-399 Drum 230 59 200 202 57 4
크레도스 CREDOS Ⅰ,II 95/06-00/07 F GD2510-275 Vented 259 49 24 22 72 4
CREDOS Ⅰ,II 95/06-00/07 R GD2520-512 Solid 261 40 10 8 72 4
스펙트라 SPECTRA 00/05-03/11 F GD2910-0181 Vented 257 49 24 22 57 4
SPECTRA 00/05-03/11 R GD2920-515 Drum 230 59 200 202 57 4
옵티마 OPTIMA 00/07-05/11 F GD3010-375 Vented 257 45 24 22 69 4
OPTIMA 00/07-05/11 R GD3020-522-32 Solid 262 62 10 8 76 4
OPTIMA REGAL 02/05-05/11 F GD3110-362 Vented 280 47 26 24 69 4
OPTIMA REGAL 02/05-05/11 R GD3120-521 Solid 262 62 10 8 76 4
쎄라토 CERATO 1.6 03/11-08/08 F 2F000-22 Vented 257 47 24 22 69 4
CERATO 2.0 03/11-08/08 F 2F000-23 Vented 275 48 26 24 69 4
CERATO 03/11-08/08 R GD3630-520 Solid 258 42 10 8 76 4
포르테 FORTE 08/08-13/08 F GD5410-315 Vented 280 48 26 24 69 5
FORTE 08/08-13/08 R GD5420-564 Solid 262 64 10 8 76 5
로체 LOTZE 05/11- F GD3510-315 Vented 280 48 26 24 69 5
LOTZE 05/11- R GD3520-559 Solid 261 61 10 8 76 5
K3 K3 15' 12/09-15/11 F GD6220-280 Vented 280 46 23 21 69 5
K3 16' 12/09-15/11 F GD6220-290 Vented 302 43 28 26 69 5
K3 12/09-15/11 R GD6220-300 Solid 263 47 13 11 76 5
K5 K5 15' 10/04-15/07 F GD6010 Vented 280 48 26 24 69 5
K5 16' 10/04-15/07 F GD6020 Vented 302 43 28 26 69 5
K5 17' 10/04-15/07 F GD6030 Vented 320 48 28 26 69 5
K5 15' 10/04-15/07 R GD6040-010 Solid 262 62 10 8 76 5
K5 16' 10/04-15/07 R GD6040-020 Solid 284 56 10 8 76 5
K5 17' 10/04-15/07 R GD6040-030 Solid 285 33 10 8 76 5
K7 K7 16' 09/11- F GD5610 Vented 302 43 28 26 69 5
K7 17' 09/11- F GD5710 Vented 320 48 28 26 69 5
K7 09/11- R GD5620-010 Solid 284 56 10 8 76 5
K9 K9 12/05-14/11 R GD7720-201 Vented 313 61 20 18 69 5
오피러스 OPIRUS 03/04- F GD3210-294 Vented 302 43 28 26 69 5
OPIRUS 03/04- R GD3220-628 Solid 285 72 10 8.4 76 5
OPIRUS NEW 06/05- R GD3220-728 Solid 284 56 10 8 76 5
포텐샤 POTENTIA 92/04-97/05 F GD3310-108 Vented 256 37 22 20 100 5
POTENTIA 92/04-97/05 R GD3320-509 Solid 266 55.5 18 16.4 68 5
엔터
프라이즈
ENTERPRISE 97/03- F GD3410-106 Vented 247 47 24 22 72 5
레토나 RETONA 98/06- F GD5210-765 Vented 284 51 24 22 96 5
쏘울 SOUL 08/09- F GD5310-315 Vented 280 48 26 24 69 5
SOUL 08/09- R GD5320-568 Solid 262 64 10 8 76 5
카렌스
RS
CARENS Ⅰ 00/05-02/03 F GD2710-236 Vented 259 49 24 22 72 4
CARENS Ⅱ 02/03-06/04 F GD2720-155 Vented 280 49 26 24 72 4
CARENS Ⅱ 00/05-06/04 R GD2730-511 Solid 261 40 10 8 72 4
카렌스
UN
CARENS NEW 06/04- F GD2810-185 Vented 280 49 26 24 72 5
카스타 CARSTAR 99/04-02/10 F GD4210-139 Vented 256 45 24 22 69 4
스포티지
KM
SPORTAGE NEW 04/08-10/03 F GD4110-213 Vented 280 48 26 24 69 5
SPORTAGE NEW 2WD 04/08-10/03 R GD4120-558 Solid 261 61 10 8 76 5
SPORTAGE NEW 4WD 04/08-10/03 R GD4130-541 Solid 285 61 10 8 71 5
스포티지
SL
SPORTAGE R 2WD 10/03- F GD6110-215 Vented 280 48 26 24 69 5
SPORTAGE R 4WD 10/03- F GD6120-315 Vented 302 43 28 26 69 5
SPORTAGE R 2WD 10/03- R GD6130-215 Solid 262 62 10 8 76 5
SPORTAGE R 4WD 10/03- R GD6140-315 Solid 285 61 10 8 71 5
쏘렌토
BL
SORENTO 02/02-06/04 F GD5010-163 Vented 302 54 28 26 96 5
SORENTO 02/02-06/04 R GD5020-531 Vented 315 88 20 18 96 5
SORENTO NEW 06/04-09/04 R GD5030-543 Vented 315 79 20 18 96 5
쏘렌토
XM
SORENTO R 09/04-12/07 F HK5510-339 Vented 298 50 28 26 69 5
SORENTO R 09/04-12/07 R HK5510-340 Solid 303 72 11 9 69 5
모하비 MOHAVE 08/01-16/02 F GD5510- Vented 328 57 28 26 69 6
MOHAVE 08/01-16/02 R GD5610- Vented 325 66 13 11 69 6
카니발
KV-II
CARNIVAL 98/01-01/02 F GD3710-104 Vented 247 47 24 22 72 5
CARNIVAL 98/01-01/02 R GD3710-571 Drum 296 104 249 246 71 5
CARNIVAL Ⅱ 01/02-05/10 F GD3810-148 Vented 274 49 26 24 72 5
CARNIVAL Ⅱ 01/02-05/10 R GD3820-581 Drum 298 90 254 257 71 5
카니발
VQ
GRAND CARNIVAL (9) 05/07- F GD3910-278 Vented 300 54 28 26 96 6
GRAND CARNIVAL (11) 05/07- F GD3920-247 Vented 325 54 30 28 96 6
GRAND CARNIVAL 05/07- R HK7950-821 Solid 325 70 12 10 96 6
카니발
YP
CARNIVAL YP 14/06- F HK7960-820 Vented 320 50 29 27 69 5
CARNIVAL YP 14/06- R HK7970-830 Solid 322 67 13 11 69 5
베스타/
와이드봉고
BESTA/ BONGO SR 89/01-95/05 F GD4310-562 Vented 256 20 20 18 86 6
BESTA/ BONGO SR 89/01-95/05 R GD4320-507 Drum 312 76 259 262 93 6
하이
베스타
HIGH BESTA 93/07- F GD4410-019 Vented 256 24 24 22 86 6
HIGH BESTA 93/07- R GD4420-248 Drum 312 76 259 262 93 6
프레지오 PREGIO 96/02- F GD4510-803 Vented 258 56 26 24 87 6
PREGIO 96/02- R GD4520-501 Drum 312 76 259 262 93 6
토픽 TOPIC 87/10- F GD5110-207 Vented 260 20 20 18 86 6
봉고 BONGO 1.2/1.3/1.4t 95/05-03/12 F GD4810-176 Vented 295 96 35 33 117 5
BONGO III truck 04/01- F GD4610-198 Vented 277 25 26 24 92 5
BONGO III truck 04/01- R GD4620-501 Drum 254 110 226 228 121 5
BONGO III van 04/01- F GD4630-252 Vented 280 54 28 26 87 5
BONGO III van 04/01- R GD4640-507 Drum 304 117 261 263 120 5
BONGO III 2009 09/04-11/11 F GD4660-400 Vented 278 27 26 24 92 5
BONGO III EURO5 12/01- F GD4660-401 Vented 279 43 26 24 92 5
봉고
프런티어
BONGO FRONTIER 1t 97/04-02/12 F GD4710-604 Vented 262 24 24 22 86 6
BONGO FRONTIER 1t 97/04-02/12 R GD4720-519 Drum 253 160 220 223 76 5
BONGO FRONTIER 1.3t 97/04-02/12 F GD4810-176 Vented 295 96 35 33 117 5
BONGO FRONTIER 1.3t 97/04-02/12 R GD4820-522 Drum 250 103 120 123 134 6
BONGO FRONTIER 1.4t 97/04-02/12 F GD4910-176 Vented 295 96 35 33 117 5
BONGO FRONTIER 1.4t 97/04-02/12 R GD4920-538 Drum 243 91 202 205 134 6
BONGO FRONTIER 4WD 00/12-03/12 F GD4710-605 Vented 261 25 24 22 93 5
 제품디자인은 차종에 따라 보이는 이미지가 다를 수 있습니다.
